This project aims to build a setup based on a servomechanism and a sensor MQ-5, with the purpose of opening a window in case the gas concentration rises above a desired value.

Block diagram of the project

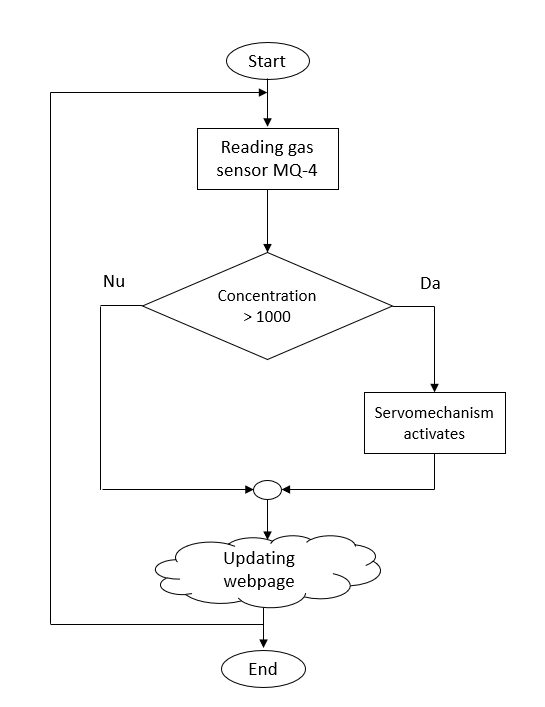

Flowchart of the project

• ESP32 board
• MQ-4 sensor, detecting SnO2
• SG90 servomechanism
• microusb - usb A cable
• dupont cables

Code snippets

#include <WiFi.h>
#include <WebServer.h>
#include <ESP32Servo.h>

const char* ssid = "";
const char* password = "";

#define ANALOG_PIN 34  // Pinul conectat la AO al senzorului MQ-4
#define SERVO_PIN 13   // Pinul conectat la servomotor

int valoare_analogica = 0;
String nivelGaz = "";
String culoareNivel = "green";
bool servoActiv = false;
bool modAutomat = true;
int pragActivare = 800;

Servo myservo;

void loop() {
  server.handleClient();


  valoare_analogica = analogRead(ANALOG_PIN);


  if (modAutomat) {
    if (valoare_analogica >= pragActivare && !servoActiv) {
      activeazaServo();
    } else if (valoare_analogica < pragActivare && servoActiv) {
      dezactiveazaServo();
    }
  }

  delay(100);
}

// Funcție pentru activarea servomotorului
void activeazaServo() {
  myservo.write(90);
  servoActiv = true;
  Serial.println("Servo activat!");
}

// Funcție pentru dezactivarea servomotorului
void dezactiveazaServo() {
  myservo.write(0);
  servoActiv = false;
  Serial.println("Servo dezactivat!");
}

Figuring out a way to design the webpage to allow me to switch the servomechanism to “automated” or “manual” mode.

-
