Alarm Clock For Heavy Sleepers
Introduction
Description: The project consists of an alarm clock that, on ringing, will diplay a series of math questions and the user will have to correcty answer three in a row for the alarm to stop. Alternatively, if math proves to be too difficult at the time, the user can stop the alarm by yelling at it with sufficient volume.
Purpose: The purpose of the device is to make sure that the user is actually awake when turning off the alarm.
Utility: It's inteded to be usefull for people who frequently turn off their morning alarm and imediately fall back asleep.
General description
Normal state Device displays current time. The microcontroller reads the time from the RTC module and displays it on the LCD. From this state the user can press the 1 key to open settings.
Settings menu Time is replaces by settings menu. The LCD will show on the top row the name of a setting (ex: “set alarm”) and on the bottom row the options “1back 2ok 3next”. If the user presses 1 the clock goes back to normal state, if they press 2 the bottom row is replaced with input options for the setting in question” and if they press 3 the top row will display next setting. The possible settings are the following:
- set alarm - the user can input the time for the alarm to ring or turn off alarm (a LED will be lit if alarm is set)
- ragequit mode - on/off setting that enables or disables the function to turn off alarm by yelling (a LED will be lit if mode is enabled)
- volume - allows user to adjust alarm volume
- brightness - allows user to adjust display brightness
Alarm time When current time reaches the value set for the alarm, the microcontroller will send the alarm tone signal to the buzzer for it to ring. On the display, the current time will be replaced by a math question generated by the microcontroller. The user will be able to enter answer trough keypad and the microcontroller will keep track of the number of consecutive correct anwers. If this number reaches 3, the alarm will turn off and the clock will go back to normal state.
At the same time, if ragequit mode is enabled, the microcontroller will check the inputs from the noise sensor and turn the alarm off if a loud enough sound was detected.
Hardware Design
| No | Component | Role |
|---|---|---|
| 1 | atmega328p-xPlained Mini | microcontroller |
| 2 | 16×2 LCD | displays time + math questions + settings menu |
| 3 | 4×4 Keypad | user input for settings and question answers |
| 4 | Noise Sensor | detects if sound exceeds a treshold (user yelled loud enough) |
| 5 | Passive Buzzer | produces alarm sound |
| 6 | RTC Module | keeps time |
| 7 | LED (x2) | display certain settings (1 for showing if an alarm time is set, 1 for showing if ragequiting mode is enabled) |
| 8 | 220ohmRezistors (x2) | creating the LED circuits |
| 9 | Breadboard | connecting other components |
| 10 | Dunport wires (various types) | connecting other components |
Pin connections
The LCD display and the RTC module communicate with the board through its I2C bus, so I connected themto the designated I2C pins of the board.
The keypad, I initially thought communicates trough I2C as well as that is what is says on the product page. However, by reading the linked library I noticed that while it does use only 2 pins to send data, it doesn't use I2C. The pins used in the library's example aren't the one used for I2C and the device doesn't have an I2C address. As a result I updated the pin connections and connected the keypad to 2 GPIO pins instead of the I2C bus.
For the buzzer, I chose to use a passive buzzer in order to include PWM concepts and have a more customizable alarm tone. Because of that, I connected the it to a pin that supports PWM.
The noise sensor has strictly digital output so it could be connected to a GPIO pin.
The 2 LEDs are also connected to GPIO pins as I only need them to show whether certain settings are activated or deactivated.
| No | Component | component pin | microcontroller pin |
|---|---|---|---|
| 1 | LCD | SDA | PC4 |
| SCL | PC5 | ||
| VCC | 5V | ||
| GND | GND | ||
| 2 | Keypad | SDO | PB0 |
| SCL | PB1 | ||
| VCC | 5V | ||
| GND | GND | ||
| 4 | Noise Sensor | OUT | PD4 |
| VCC | 5V | ||
| GND | GND | ||
| 5 | Passive Buzzer | + | PD5 |
| - | GND | ||
| 6 | RTC Module | SDA | PC4 |
| SCL | PC5 | ||
| VCC | 5V | ||
| GND | GND | ||
| 7 | LED1 | + | PD2 |
| - | GND | ||
| 8 | LED2 | + | PD3 |
| - | GND |

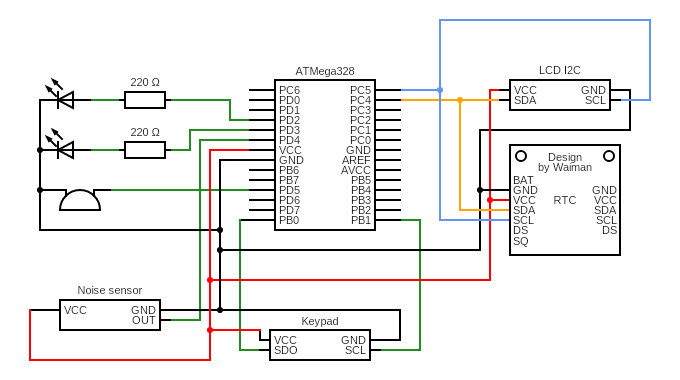

Electrical diagram
This is an electrical diagram showing the connections as described in the table above, with the addition of showing where resistors will be connected.
This is the color coding I used in making the diagram:
- in red are VCC connections
- in black are GND connections
- in blue are I2C SCL connections
- in orange are I2C SDA connections
- in green are other types of input/output

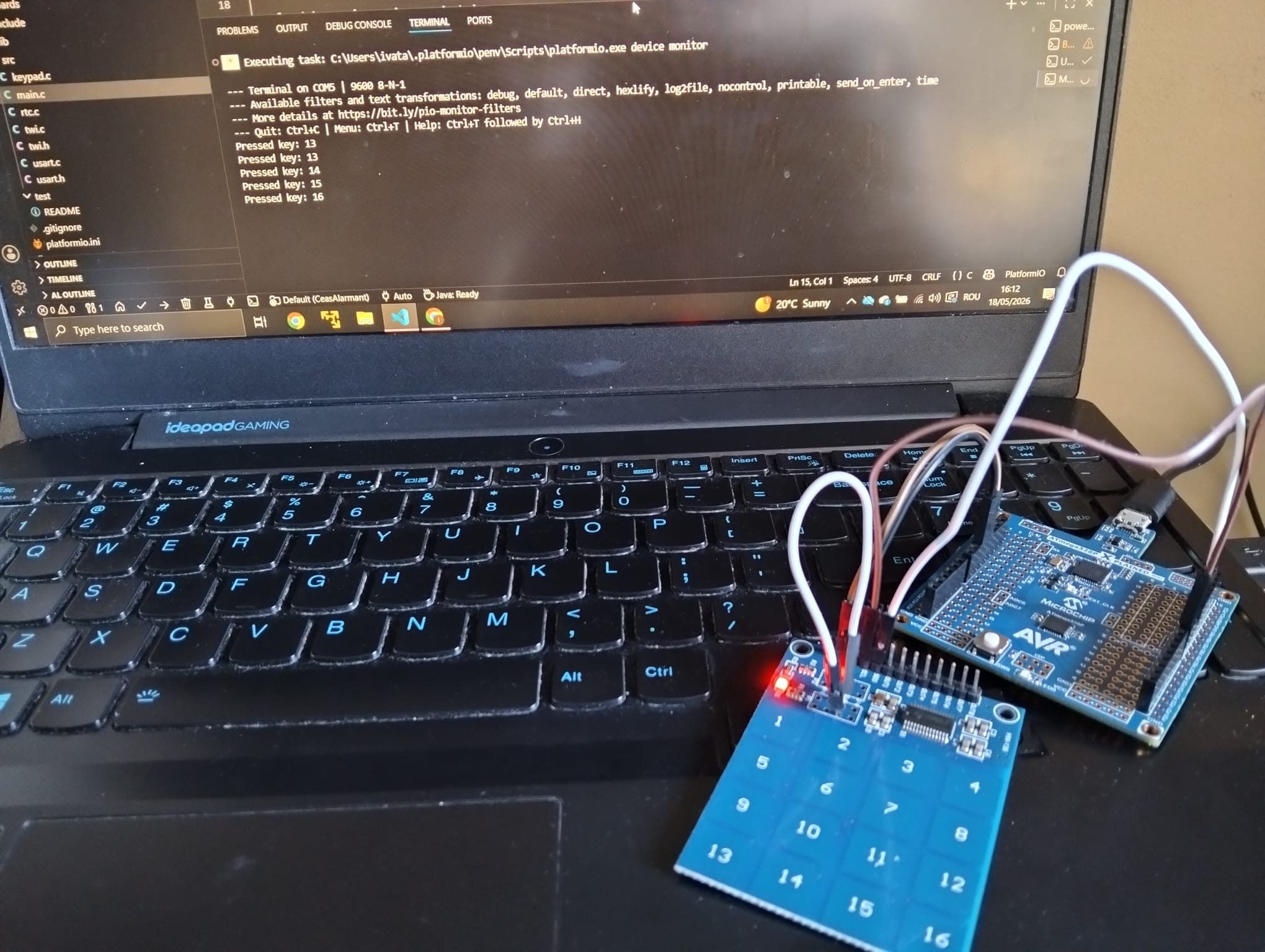

Keypad input showcase
This is a picture of only the keypad part of the device (i disconected the other components for better visibility). To showcase the fact that the microcontroller received user input from the keypad while not yet having connected the LCD display, I used the USART protocol to print the keypad input on the serial monitor. This picture is taken after pressing the series of keys 13, 13, 14, 15, 16 on the keypad and it can be observed that the same series of keys was printed on the laptop screen.

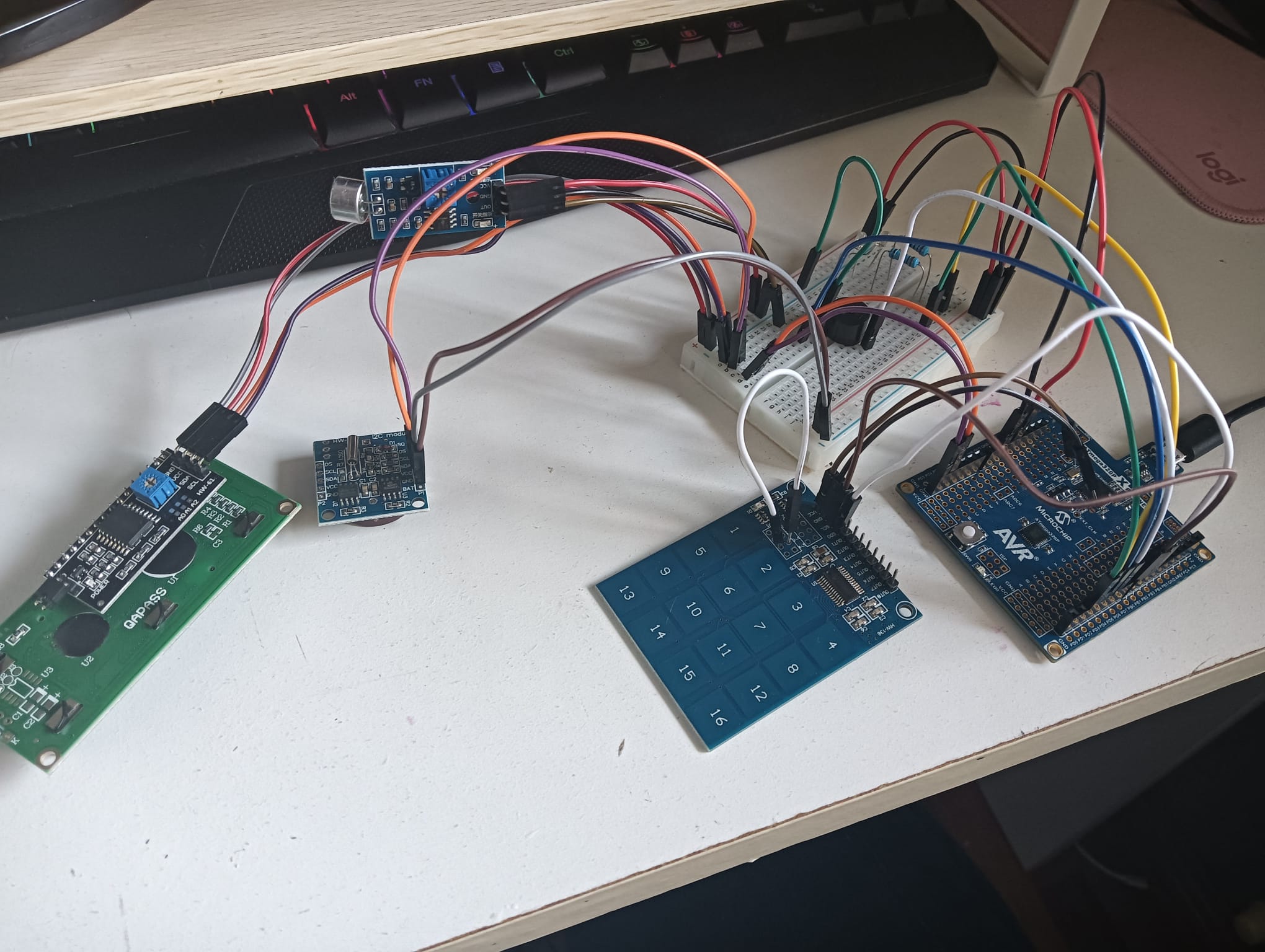

Image of the complete circuit
Software Design
- mediu de dezvoltare (if any) (e.g. AVR Studio, CodeVisionAVR)
- librării şi surse 3rd-party (e.g. Procyon AVRlib)
- algoritmi şi structuri pe care plănuiţi să le implementaţi
- (etapa 3) surse şi funcţii implementate
Rezultate Obţinute
Concluzii
Download
.
Fişierele se încarcă pe wiki folosind facilitatea Add Images or other files. Namespace-ul în care se încarcă fişierele este de tipul :pm:prj20??:c? sau :pm:prj20??:c?:nume_student (dacă este cazul). Exemplu: Dumitru Alin, 331CC → :pm:prj2009:cc:dumitru_alin.
Jurnal
Bibliografie/Resurse
