The Smart Drawer Anti-Theft System is an embedded security system designed to protect a drawer, box, or small storage compartment against unauthorized access. The system uses an ESP32 microcontroller and detects suspicious activity using two complementary methods: motion detection with an I2C accelerometer and light detection using three LDR sensors placed inside the drawer.

The purpose of the project is to build a realistic, low-cost, and physically implementable anti-theft system using common components that can be connected on a breadboard. When the system is armed and detects movement, vibration, or light inside the drawer, it activates a passive buzzer and sends a notification through Bluetooth to a PC.

The initial idea came from the need for a simple security solution for personal objects stored in a drawer. A drawer is normally dark and still when closed, so sudden light exposure or movement can indicate that someone opened or moved it. By combining an accelerometer with three LDR sensors, the system can detect multiple types of unauthorized access and reduce false alarms.

The project is useful because it demonstrates several important embedded systems concepts in a practical application: analog sensor reading, I2C communication, PWM signal generation, Bluetooth communication, and finite state machine control. It is also useful from a practical point of view, because it can be extended into a real small-scale alarm system.

The system is built around an ESP32 DevKit board, which acts as the main controller. The ESP32 reads the three LDR sensors through ADC pins, communicates with the accelerometer using the I2C bus, controls the passive buzzer using PWM, and exchanges commands and notifications with the user through Bluetooth.

The user interface is implemented exclusively through Bluetooth. There is no display and no physical keypad. The user can arm or disarm the system remotely by sending commands from a PC or phone connected to the ESP32 Bluetooth serial interface.

The system has three main states:

• DISARMED - the system is inactive. Sensors may still be read for debugging or status reporting, but they do not trigger the alarm. The buzzer is turned off.
• ARMED - the system monitors the accelerometer and the three LDR sensors. If movement, vibration, or light is detected, the system enters the alarm state.
• ALARM - the buzzer is active and a Bluetooth notification is sent. The system remains in this state until a correct DISARM <PIN> command is received.

The supported Bluetooth commands are:

• ARM <PIN>
• DISARM <PIN>
• STATUS
• CHANGE_PIN <old_pin> <new_pin>

The PIN is validated by the firmware before changing the security state of the system. Invalid commands or incorrect PIN values are rejected and reported back through Bluetooth.

The system contains the following modules:

• ESP32 DevKit - central processing unit of the project.
• LDR sensor module - made of three LDR voltage dividers connected to ADC pins.
• Accelerometer module - detects movement and vibration through I2C communication.
• Bluetooth serial interface - receives user commands and sends status or alarm messages.
• Buzzer driver - uses a transistor controlled by a PWM signal from the ESP32.
• State machine firmware - decides whether the system is disarmed, armed, or in alarm mode.

The three LDR sensors are used for redundancy. Instead of triggering the alarm based on only one sensor, the firmware can use a two-out-of-three decision rule. This makes the light detection more reliable and helps avoid false alarms caused by sensor noise or uneven lighting.

The accelerometer is used to detect drawer movement, vibration, or sudden displacement. This is useful because an attacker may move the drawer or the whole box without fully opening it, in which case the light sensors may not detect a change immediately.

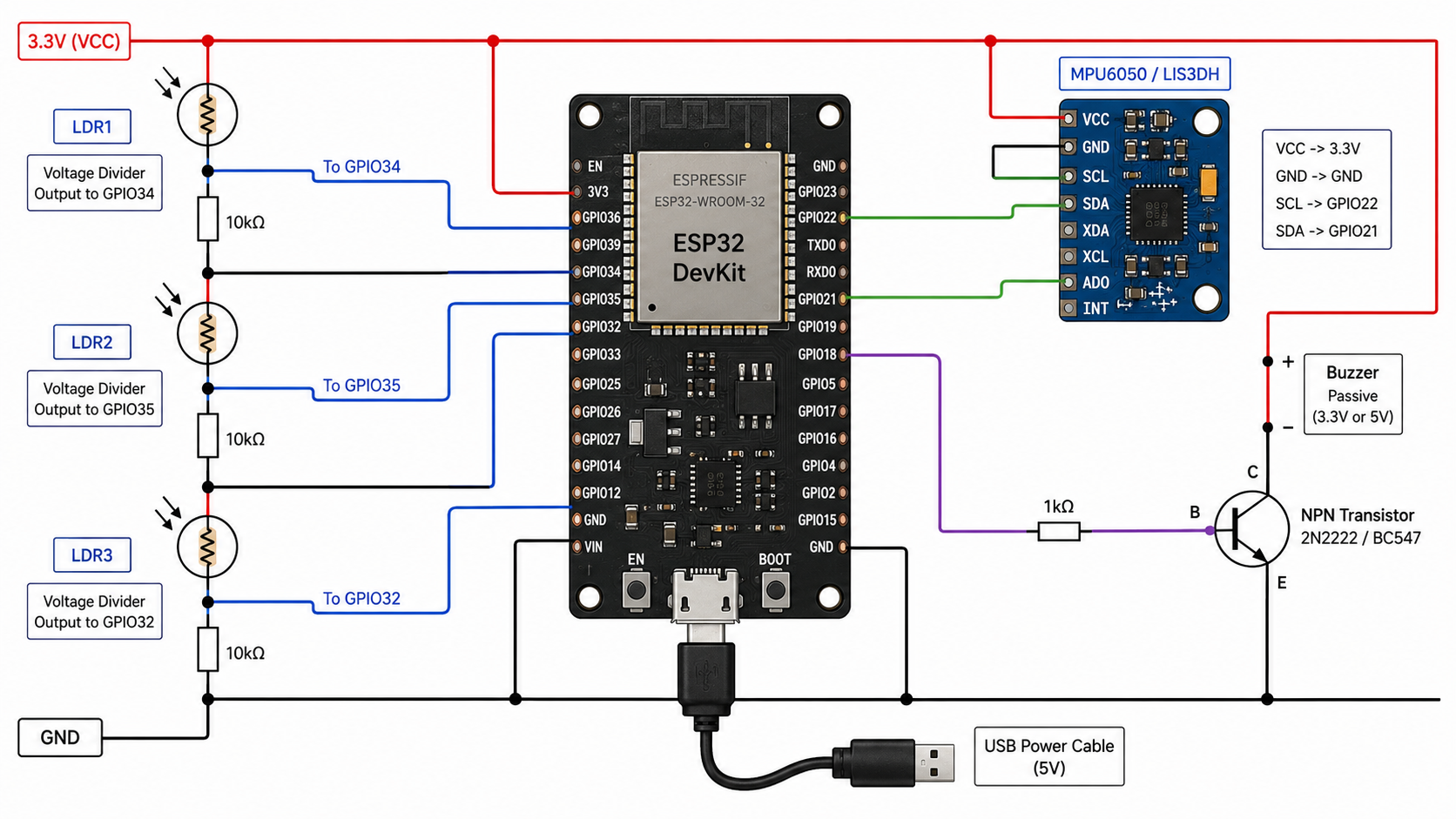

Each LDR is connected as part of a voltage divider powered from 3.3V, so the output voltage is compatible with the ESP32 ADC input range.

One possible connection for each LDR channel is:

3.3V --- LDR --- ADC_PIN --- 10 kΩ --- GND

In this configuration, the ADC value changes depending on the amount of light reaching the LDR. The exact threshold will be calibrated experimentally after the sensors are mounted inside the drawer.

The project uses three LDR sensors instead of one in order to improve reliability. The firmware can consider light detected only when at least two sensors report values above the configured threshold.

The accelerometer module is connected to the ESP32 using the I2C bus:

ESP32 GPIO21  ->  SDA
ESP32 GPIO22  ->  SCL
ESP32 3.3V    ->  VCC
ESP32 GND     ->  GND

The selected accelerometer module must be compatible with 3.3V logic levels. The MPU6050 and LIS3DH are common options and both can be used for this project if the module is powered correctly.

The accelerometer is used to detect changes in acceleration. Sudden changes or values above a configured threshold are interpreted as movement, vibration, or drawer displacement.

The passive buzzer is controlled through a transistor instead of being connected directly to the ESP32 GPIO pin. This protects the microcontroller and allows the buzzer current to be switched safely.

The ESP32 generates a PWM signal on GPIO25. This signal is applied to the base of the NPN transistor through a 1 kΩ resistor. The transistor works as a low-side switch for the buzzer.

Basic connection:

ESP32 GPIO25 --- 1 kΩ --- NPN base
NPN emitter -------------- GND
NPN collector ------------ buzzer negative terminal
buzzer positive terminal -- 3.3V

A 10 kΩ pull-down resistor can be connected between the transistor base and GND to keep the buzzer off while the ESP32 pin is not configured.

• All sensors are powered from 3.3V, which is compatible with the ESP32.
• ADC pins must never receive voltages higher than 3.3V.
• GPIO34 and GPIO35 are input-only pins, which is suitable for LDR readings.
• The buzzer is controlled through a transistor, not directly from an ESP32 GPIO pin.
• The ESP32, accelerometer, LDR circuits, and buzzer driver must share a common ground.
• The final prototype can be assembled on a breadboard using jumper wires and USB power.
