The project is structured around the ATmega328p XMINI microcontroller, which coordinates all hardware and software modules.

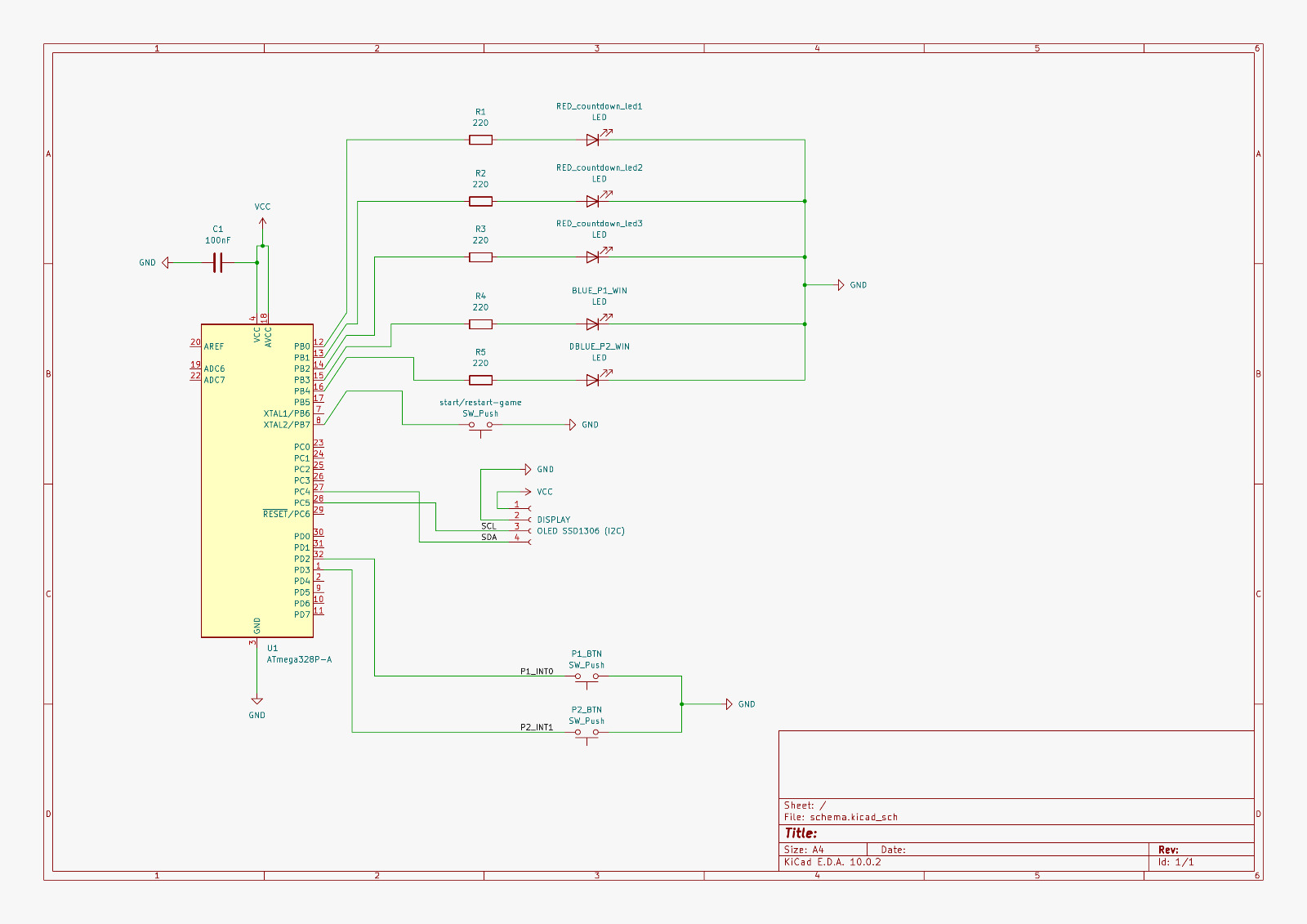

Hardware modules:

• 3× Red LEDs — connected to digital output pins, light up sequentially during the countdown phase, then turn off simultaneously as the start signal
• 2× Player buttons — connected to external interrupt pins INT0 (PD2) and INT1 (PD3), each assigned to one player
• 2× Blue LEDs — connected to output pins, one lights up to indicate the winning player
• OLED display SSD1306 — communicates with the microcontroller via the I2C protocol (SDA/SCL), displays the winner and reaction time in milliseconds

Software modules:

• Interrupts (Lab 2) — button presses are handled via hardware interrupts, ensuring the fastest possible response time detection
• Timers (Lab 3) — Timer1 measures the reaction time in milliseconds; Timer0 generates the random delay between the countdown and the GO signal
• I2C communication (Lab 6) — the TWI hardware module sends data to the OLED display to render text

The game follows a fixed sequence of states:

1. IDLE — waiting for start button (PB7)
2. COUNTDOWN — LED1, LED2, LED3 light up one by one, 1 second apart. Player button presses during this phase trigger a false start (INT0/INT1).
3. RANDOM DELAY — all 3 LEDs remain on for a random interval between 1 and 3 seconds.
4. GO — all LEDs turn off simultaneously. Timer1 starts measuring reaction time.
5. RESULT — first player to press wins. Winner LED lights up, OLED displays both reaction times. If a false start occurred, the offending player is disqualified.

The firmware was developed using PlatformIO integrated into Visual Studio Code, targeting the ATmega328P with the Arduino framework (used only as a build system — all peripheral control is done via direct AVR register access, without any Arduino library functions).

Upload is done via the xplainedmini protocol using avrdude, over USB.

No external libraries were used. All drivers were implemented from scratch using AVR-libc headers only:

• <avr/io.h> — register definitions
• <avr/interrupt.h> — ISR macro and sei()/cli()
• <util/delay.h> — _delay_ms() for debouncing

The SSD1306 OLED driver, TWI/I2C driver, USART driver, and timer modules were written entirely by hand, inspired by the laboratory implementations provided during the PM course.

Game state machine

The game runs as a sequential state machine inside the main loop:

1. IDLE — display shows “READY”, waiting for SW0 (PB7) press
2. COUNTDOWN — LED1, LED2, LED3 light up one by one at 1s intervals using non-blocking timing via uptime_ms(). External interrupts INT0/INT1 are active during this phase to detect false starts.
3. RANDOM DELAY — all 3 LEDs remain on for a random interval (1–3 seconds), generated via rand() seeded with uptime_ms()
4. GO — LEDs turn off, Timer1 starts counting reaction time
5. RESULT — first player to press wins. If a false start was detected, the offending player is disqualified. Results are shown on OLED and serial.

Non-blocking timing

All delays during the countdown and random delay phases use the pattern:

uint32_t t = uptime_ms();
while ((uptime_ms() - t) < 1000 && !false_start_p1 && !false_start_p2);

This allows the main loop to remain responsive to false start interrupts even while waiting.

False start detection

External interrupts INT0 (PD2) and INT1 (PD3) are configured for falling edge detection. ISRs set volatile flags only if game_started == 0:

ISR(INT0_vect) { if (!game_started) false_start_p1 = 1; }
ISR(INT1_vect) { if (!game_started) false_start_p2 = 1; }

Reaction time measurement

Timer1 is initialized in CTC mode at 16MHz with prescaler 8, generating an interrupt every 1ms (OCR1A = 1999). A volatile counter reaction_ticks increments in the ISR. Timer1_start() resets and enables it; Timer1_get_ms() reads the counter atomically using cli()/sei().

I2C communication

The TWI hardware module is configured for 100kHz SCL frequency. The SSD1306 driver sends initialization commands on startup, then writes character bitmaps page by page using twi_start/twi_write/twi_stop sequences.

OLED font rendering

Characters are stored as a 5×7 bitmap font in Flash memory (PROGMEM) for 58 ASCII characters (space through Z). Each character is 5 bytes wide plus 1 byte spacing. ssd1306_print_str() renders a string at a specified page row (0–7).
