List of materials for the smart clock:

• Arduino UNO R3 development board (CH340 compatible)
• DS3231 RTC module + CR2032 battery
• 0.96″ OLED display, I²C (SSD1306)
• MB102 breadboard, 830 tie-points
• Male-to-male jumper-wire set (≥ 65 leads)
• Passive buzzer, 5 V
• Red 5 mm LED – hour indicator
• Green 5 mm LED – minute indicator
• Common-cathode RGB LED, 5 mm (+ 3 × 220 Ω resistors)
• 220 Ω resistors × 2 (for the LEDs)
• 6 × 6 mm tactile button (SET)
• Photo-resistor (LDR) GL5528
• USB-A ↔ USB-B cable (programming & power)
• 5 V / ≥ 1 A PSU (phone charger)

Connected components & functionalities

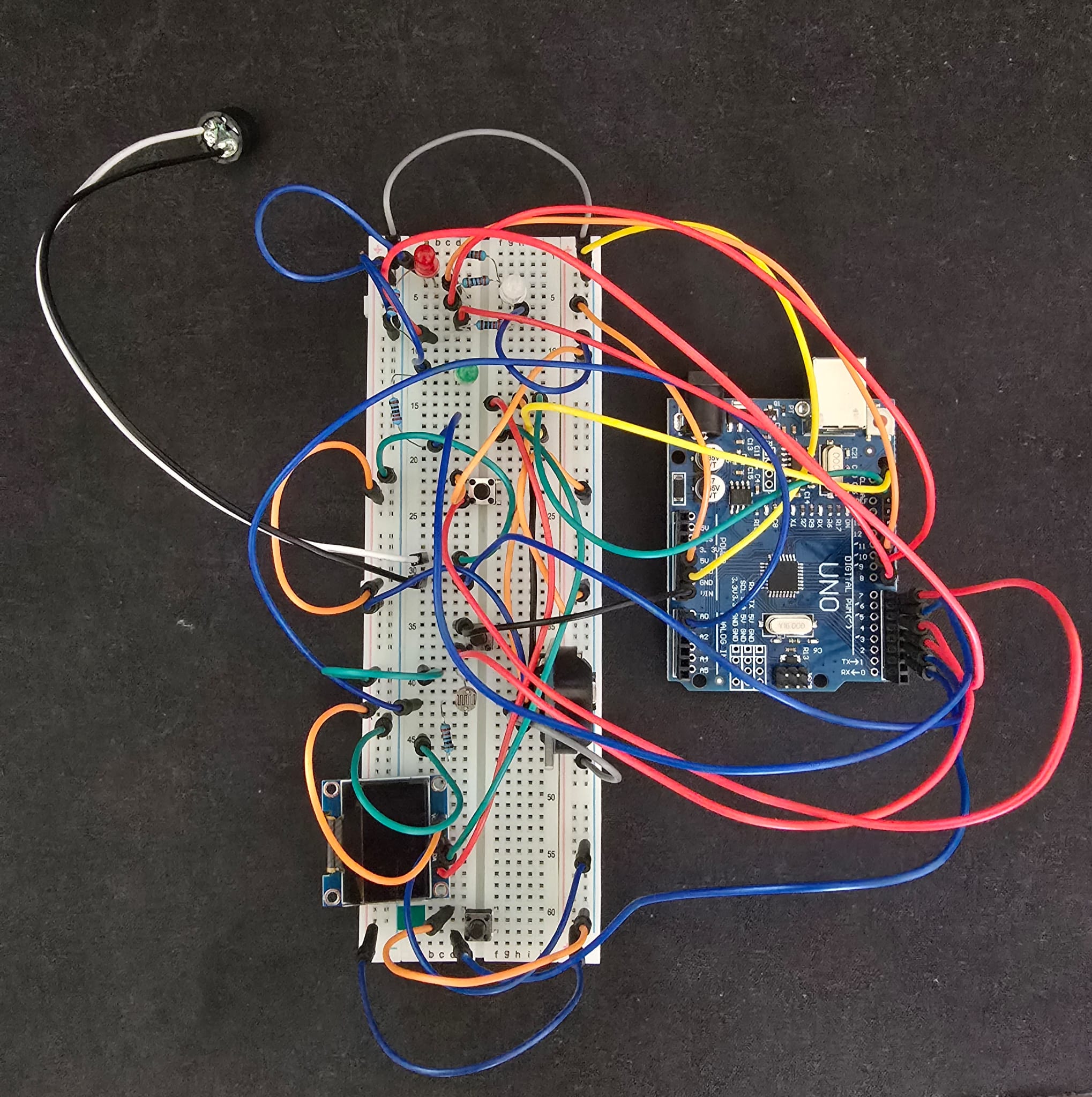

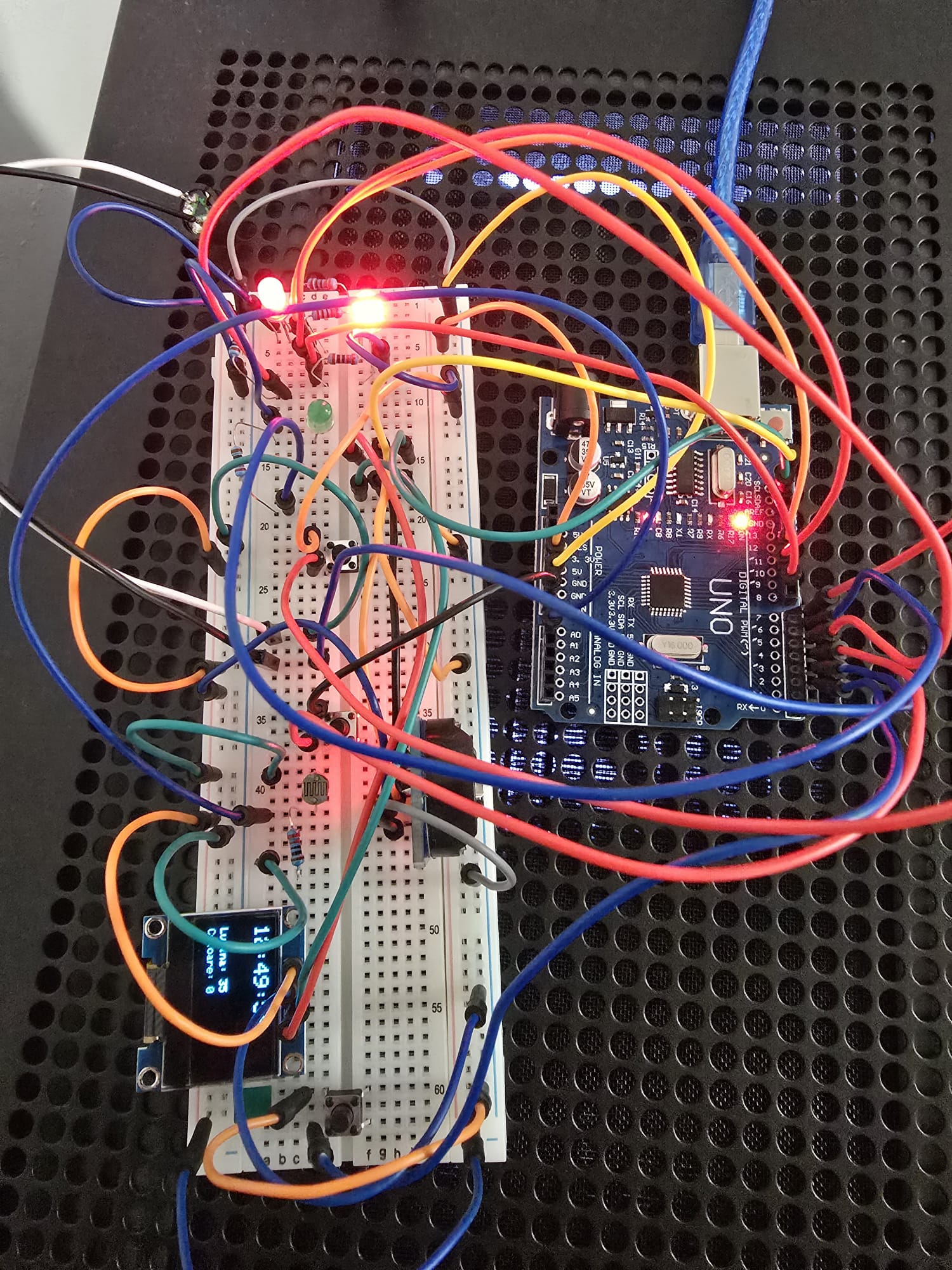

The following pictures show the physical assembly of all modules connected on a breadboard:

• OLED SSD1306 displays the following information, updated every second:
  • Current time in format `HH:MM:SS`
  • Ambient light level (lux value from LDR sensor)
  • Current RGB LED mode (`colorIdx`) + OFF status if index is 0
  • Dim mode status: “Dim mode: ON” or “Dim mode: OFF”

• RTC DS3231 is used to keep accurate time with ±1s/day drift

• LDR sensor is placed on the breadboard and provides real-time ambient light readings (0–1023)
  • Used to activate automatic dimming if value is below 400

• Push-buttons (HOUR, MINUTE, MODE) are connected to D2, D4, D7 respectively
  • Used for adjusting the hour/minute and switching LED modes

• Red and Green LEDs are individually wired and behave as follows:
  • Red LED:
    • Blinks at 1 Hz before 19:00 using `millis()` logic
    • After 19:00, represents hour value via PWM intensity
  • Green LED:
    • Briefly flashes when the minute changes before 19:00
    • After 19:00, represents minute value via PWM intensity

• Additional functionality (RGB LED + BTN MODE):
  • RGB LED (common cathode) connected to pins D9 / D10 / D11
    • Displays one of 7 fixed colours based on `colorIdx` value
    • Colour order: Red → Green → Blue → Cyan → Magenta → Yellow → White
    • Automatically dims in dark environments (detected via LDR)
    • While holding BTN MODE, RGB blinks white at 4 Hz as visual feedback

• BTN MODE (D7, INPUT_PULLUP)
  • Short press: advances to the next colour (circular logic using `colorIdx`)
  • Long press: enables fast white blinking for visual feedback
  • Every action also triggers a short beep (3 kHz, 50 ms) from the buzzer

• Passive Buzzer (D3)
  • Emits short beeps on button presses
  • Plays a long “gong” at every full hour
  • 1 Hz ticking sound every second (disabled between 19:00–23:59)

Core functionalities implemented and tested:

• Time tracking with RTC DS3231, updated every second
• OLED display shows time, ambient light (LDR), RGB LED mode and dimMode status
• Dim mode activates automatically when LDR reads below threshold (value < 400), reducing RGB LED brightness
• LED behavior is time-aware:
  • Before 19:00: Red LED blinks at 1 Hz; Green LED flashes on minute change
  • After 19:00: Red/Green LEDs act as clock hands (PWM based on hour/minute)
• RGB LED cycles through 7 preset colours using PWM; its brightness adjusts dynamically based on ambient light level measured by the LDR (auto-dim at night)

• Buzzer generates:
  • Short beep on button press (except 19–23 when silent)
  • Longer “gong” at the top of each hour
  • 1 Hz ticking sound (disabled 19–23)
• All buttons use INPUT_PULLUP and falling-edge detection to avoid bounce

Functions implemented

• void setup() – initializes I/O pins, OLED display, RTC module, and serial communication
• void loop() – non-blocking main loop, checks buttons, updates LEDs and OLED, processes tick events
• void setRGB(uint8_t r, uint8_t g, uint8_t b) – sets the RGB LED to a specific color using PWM
• void beep(uint16_t freq, uint16_t dur) – plays a tone on the buzzer unless time is between 19:00 and 23:59
• uint8_t hourToPWM(uint8_t h) – maps hour (0–23) to a PWM value (0–255) for clock-hand LED behavior
• uint8_t minuteToPWM(uint8_t m) – maps minute (0–59) to PWM value for clock-hand LED behavior

Program logic

• The program uses `millis()` to generate a 1-second tick without blocking the main loop
• At each tick:
  1. Reads current time from RTC
  2. Updates system LEDs (red/green) depending on time of day
  3. Triggers buzzer if needed (heartbeat, hourly gong, button press)
  4. Refreshes the OLED with current time, light level, color index, and dim mode status

• RGB LED:
  1. Changes color with each MODE button press
  2. Blinks white rapidly while MODE is held down (hold-feedback)
  3. Dims automatically in low light (based on LDR reading)

• LDR:
  1. Continuously read via `analogRead()`
  2. Triggers dim mode below threshold (`ldrThreshold = 400`)

• Buttons:
  1. BTN_H: increments hour on press
  2. BTN_M: increments minute + beeps
  3. BTN_MODE: cycles through color presets

How it works

• When powered on, the system initializes all components and retrieves the current time from the DS3231 RTC
• The red LED blinks every second as a heartbeat until 19:00
• After 19:00, the red LED brightness reflects the current hour (PWM), while the green LED reflects the current minute
• The green LED flashes once every new minute before 19:00
• The RGB LED can be set to one of 7 preset colors; it dims automatically at night based on ambient light
• Holding the MODE button causes the RGB LED to blink white rapidly as visual feedback
• The buzzer emits a short beep on button press and a longer “gong” at each full hour, except during the silent hours (19:00–23:59)
• The OLED displays the current time (HH:MM:SS), ambient light level, RGB mode, and whether dim mode is ON/OFF

Features implemented from labs

Lab 3 – PWM, LED breathing & analogRead

• PWM control for RGB LEDs and system LEDs (red/green after 19:00)
• Smooth “breathing” animation effect using PWM on RGB LED
• Light detection using `analogRead()` from an LDR sensor
• Threshold-based logic (`ldrThreshold = 400`) for enabling automatic “dim mode” at night

Lab 4 – millis(), timer-based updates & OLED/RTC integration

• Use of `millis()` for implementing non-blocking 1-second ticks
• Red LED blinking at 1 Hz without using `delay()`
• Real-time clock support via DS3231 and `RTClib`
• Time display updated every second on OLED using `Adafruit_SSD1306`

Lab 5 – tone() and auditory feedback

• Use of `tone()` to play short sounds on button interaction
• Hourly chime (“gong”) at full hour events
• Conditional muting logic: buzzer is disabled between 19:00–23:59 to avoid disturbance

Lab 6 – I²C bus, debouncing, edge detection, and button logic

• Communication with both RTC DS3231 and OLED SSD1306 via the I²C bus (`Wire.h`)
• All buttons are configured with `INPUT_PULLUP`
• Falling-edge detection using previous state comparison
• Three buttons implemented with distinct actions (hour, minute, mode switching)
• Every interaction triggers a visual and/or auditory feedback

The results after completing all the project:

https://streamable.com/nzzcwh

This video presents the base functionalities of the smart clock: * The OLED screen displays real-time data: current time, ambient light level (lux), and the active RGB color index. * The RGB LED changes color with each short press of BTN MODE, cycling through 7 predefined colors. * Holding BTN MODE triggers a visual feedback mode where the RGB LED blinks white at 4 Hz. * The Dim mode (based on LDR readings) reduces LED brightness in low light conditions. * The hour and minute buttons allow manual time adjustments.

https://streamable.com/ryv6rw

This clip shows the additional functionality activated after 19:00: * The red LED (D5) no longer blinks but gradually brightens depending on the current hour. * The green LED (D6) lights up with intensity proportional to the current minute. This simulates a simple hour-and-minute hand system using LED brightness. After 00:00, both LEDs return to their standard behavior (blinking and minute-flash). Additionally, the RGB LED adapts to ambient light using the LDR sensor. When you shine light onto the photoresistor, the RGB LED's brightness increases accordingly. In darker environments, the RGB LED automatically dims (enters dim mode) for smoother visual integration during nighttime. </note>

The development of this project provided valuable experience across both hardware and software domains, offering a practical understanding of embedded systems and real-time interaction.

Skills and competencies acquired:

• Embedded programming and software logic:
  • Implemented real-time clock tracking, dynamic LED behavior, PWM dimming, and non-blocking execution using `millis()`
  • Improved understanding of writing efficient, responsive code for microcontrollers

• Sensor integration and environmental feedback:
  • Used an LDR sensor to adjust LED brightness based on ambient light
  • Gained insight into environmental sensing and intelligent system response

• User interaction and input handling:
  • Handled multiple button inputs (hour, minute, mode)
  • Applied debounce and edge-detection techniques for stable input detection

• Visual output and real-time status display:
  • Utilized the OLED to show real-time time, light level, RGB mode, and dim status
  • Strengthened knowledge of I²C communication and display control

• Audio feedback and conditional logic:
  • Implemented buzzer feedback that adapts to time of day (silent hours)
  • Applied `tone()` and timers to manage auditory signals

• Problem-solving and debugging:
  • Overcame challenges in timer synchronization, display refresh, and RGB transitions
  • Improved analytical thinking and troubleshooting in embedded contexts

Practical benefits and applications:

• Time-aware visual indicators:
  • Offers LED behavior that changes based on time, useful for ambient clocks or alerts

• Custom interaction patterns:
  • Button logic and color modes are adaptable to other user-controlled systems

• Expandability and real-world relevance:
  • Modular design supports easy addition of sensors and extensions
  • Strong foundation for IoT, automation, or smart home projects

In conclusion, this project served as a comprehensive introduction to embedded system design—combining real-time programming, sensor integration, display systems, and human interaction into a cohesive and practical implementation.

Link for the code: https://github.com/Ilie28/Proiect-PM

06.05.2025 – decided on the project, wrote the description and the hardware materials
11.05.2025 – materials bought, starting on the hardware design
13.05.2025 – tested RTC, OLED, LDR, buzzer and buttons independently
15.05.2025 – implemented LED functionality (blinking, PWM, mode switching)
16.05.2025 – finished integration: all modules tested together
17.05.2025 – added RGB LED support and 7-color switching logic
18.05.2025 – finalized code, added edge detection, PWM breathing, and buzzer feedback

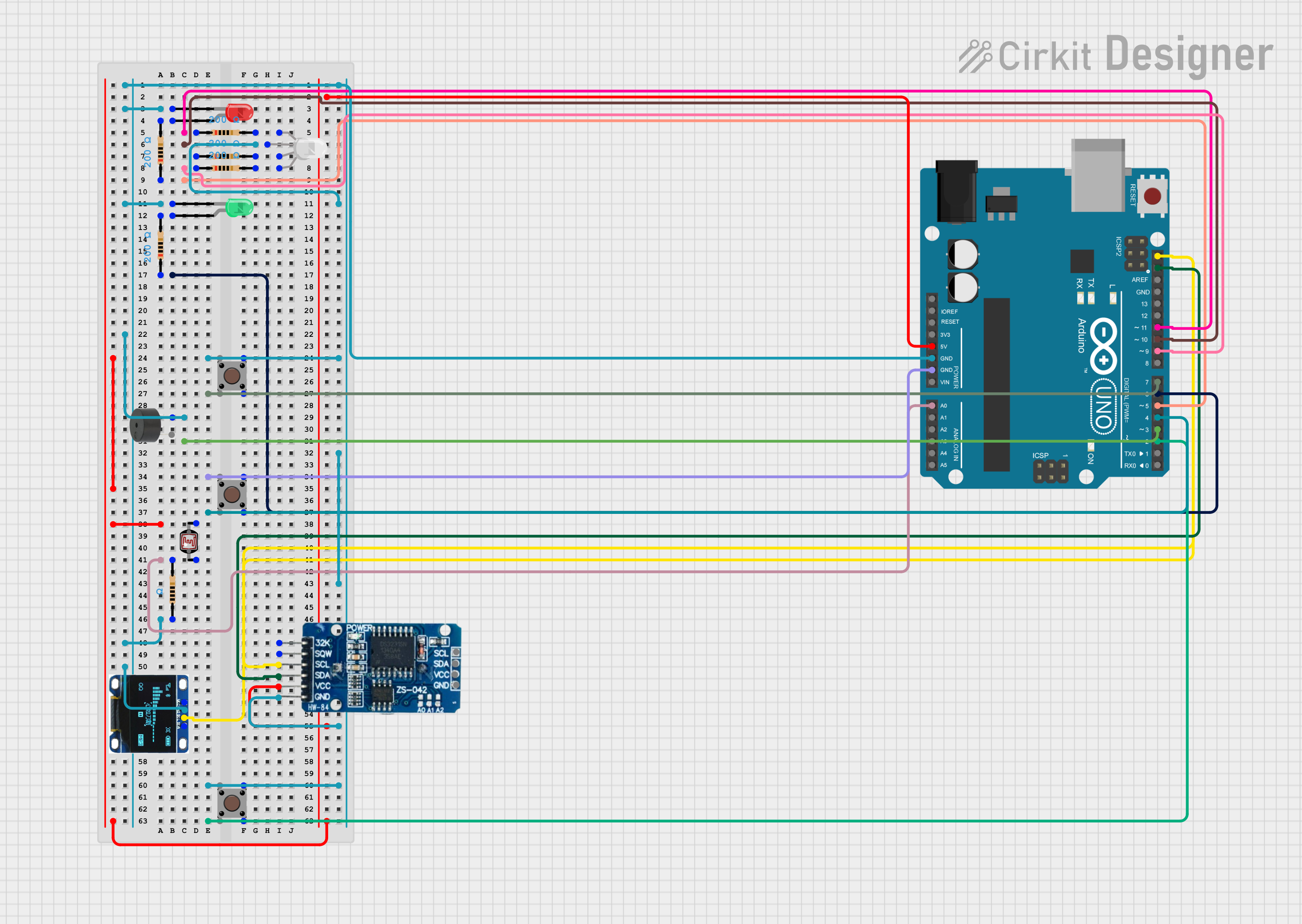

19.05.2025 – created and uploaded schematic + wiring diagram
20.05.2025 – documented project structure and updated project page
22.05.2025 – finalized software logic and display integration; completed all wiki documentation
