FaceId Security System
by Uleia Răzvan-Alexandru
Introduction
The FaceId Security System is based on recognizing the user's face and unlocking the lock if the face matches. If the system fails to recognize the face 3 times, then the user will be directed to introduce the pin manually to be able to unlock the lock.
General Description
The user will put his face within the camera reach. Firstly, the user will be asked to introduce a PIN to secure the lock. The ESP32-CAM will detect the user's face, and the user is able to add his face to the camera's feed. After this the lock will be activated. If the user wants to unlock the specific lock, he just has to put his face in the camera such that it will detect and recognize it. If somehow there is a software error and the face cannot be recognized, the user will be asked to introduce the PIN he just created to be able to unlock it.
Hardware Design
The components used in the project:
- Arduino UNO
- ESP 32-Cam
- Buzzer
- Relay Module
- UART TTL Programmer
- 12V Solenoid Lock
- 12V Battery
- 7805 Regulator
- Display LCD 2×16
- 4×4 Keypad

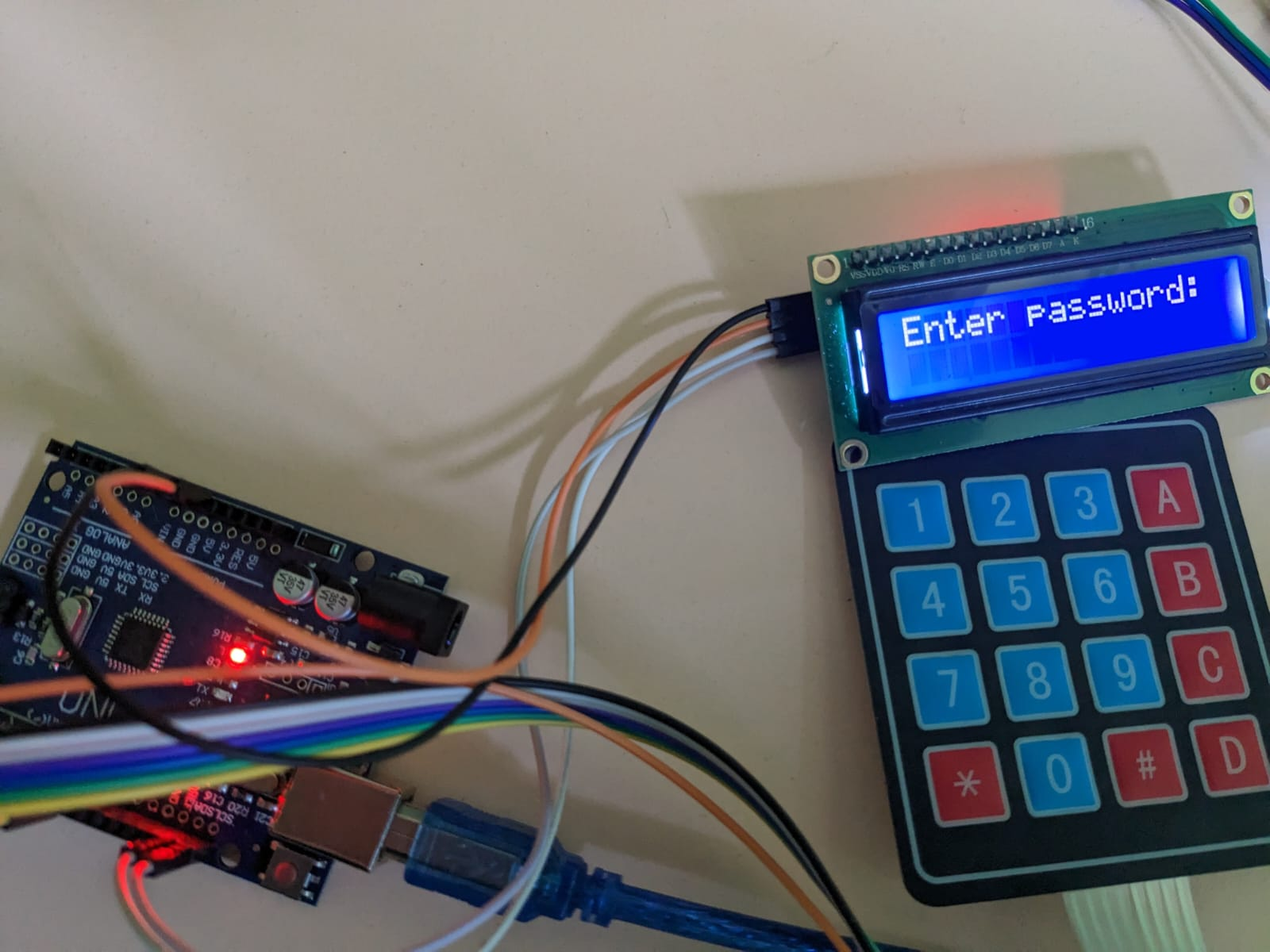

*this is not the final version, I will upload more irl pictures as soon as I get my wires delivered*
Software Design
- mediu de dezvoltare (if any) (e.g. AVR Studio, CodeVisionAVR)
- librării şi surse 3rd-party (e.g. Procyon AVRlib)
- algoritmi şi structuri pe care plănuiţi să le implementaţi
- (etapa 3) surse şi funcţii implementate
Rezultate Obţinute
Concluzii
Download
.
Fişierele se încarcă pe wiki folosind facilitatea Add Images or other files. Namespace-ul în care se încarcă fişierele este de tipul :pm:prj20??:c? sau :pm:prj20??:c?:nume_student (dacă este cazul). Exemplu: Dumitru Alin, 331CC → :pm:prj2009:cc:dumitru_alin.
Jurnal
Bibliografie/Resurse
