Arduino's Smart Piano
Introduction
This project will simulate a piano teacher using an Arduino breadboard.
General Description
The smart piano will have 2 operational modes:
}
- freestyle mode
- teaching mode
In the freestyle mode, you can play any song you want. The LED corresponding to the piano key you pressed will light up imediatelly.
In the teaching mode, the LED corresponding to the piano key on which you have to press will light up. If you pressed the correct piano key, the keyboard will move to the next note. Otherwise, all LEDS will change their color to red.
Using the active feedback way of learning (based on the repetition of all the notes learned until then) you will learn the desired song you always wanted.

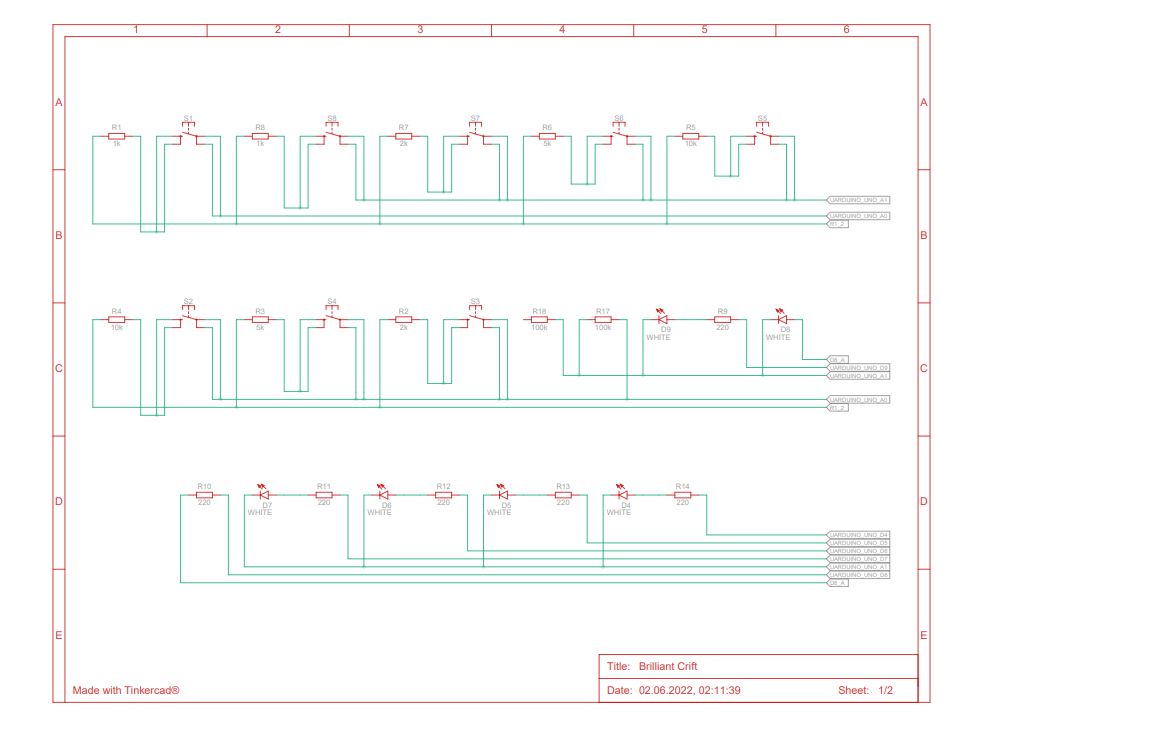

Hardware Design
For this project, I used:
- 1 Arduino UNO
- 2 Breadboards
- 10 red push-buttons, 8 corresponding to the notes for each degree of the scale, a switch mode button and an on/off button
- 8 white LEDs
- 1 passive buzzer
- 2 x 220Ω resistors
- 4 x 1kΩ resistors
- 2 x 2kΩ resistors
- 2 x 5kΩ resistors
- 2 x 10kΩ resistors
- 2 x 100kΩ resistors
In Fixed do, each syllable corresponds to the name of a note. In the major Romance and Slavic languages, the syllables Do, Re, Mi, Fa, Sol, La, and Si are used to name notes the same way that the letters C, D, E, F, G, A, and B are used to name notes in English.
Software Design
Obtained Results
Conclusions
Download
Bibliography/Resources
